Floor Type Condensing Boilers

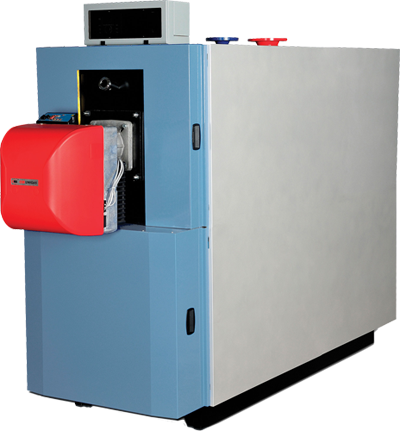

TR C 175 - 350

This boiler is designed in accordance with the principle of stratification of heat: there is high-temperature water in the upper part, while there is a high amount of cold water in the lower part, where there is condensation.
The boiler structure is designed to relieve thermal expansions.
Thermal insulation in the boiler body and cover is provided by using high-density glass wool and ceramic fiber material.
Low flue gas temperature.
All surfaces of the boiler that come into contact with condensate are stainless steel.
Control panel (Optional)
Low flue gas emissions
Built-in condensate drain

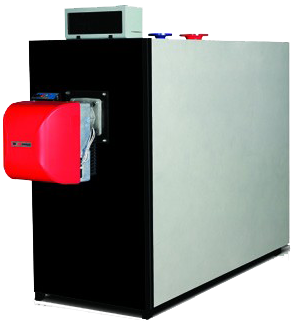

This boiler is designed in accordance with the principle of stratification of heat: there is high-temperature water in the upper part, while there is a high amount of cold water in the lower part, where there is condensation.
The boiler structure is designed to relieve thermal expansions.
Thermal insulation in the boiler body, insulation sheets and cover is provided by using high-density glass wool and ceramic fiber material.
All surfaces of the boiler that come into contact with water are stainless steel.
The control panel must be ordered separately.
Low flue gas emissions
Low housing temperature and fast response to demand
Built-in condensate drain

6-8 bar operating pressure
%96.5 is a verim

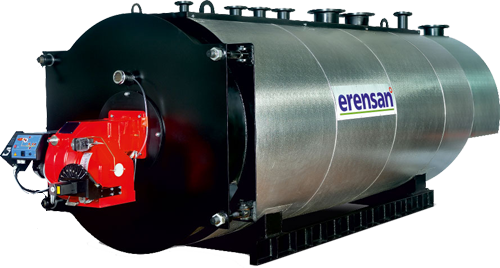

Three passes for optimum thermal balancing and heat energy utilization, effective heat utilization, reduction of operating costs
Long boiler life thanks to seamless passage in all three passes and balanced cooling of the flue gases
Durable boiler construction thanks to symmetrically positioned heat transfer surfaces
Thanks to low flue gas emissions, damage to the environment is minimized.
High operational safety thanks to integrated ejector openings designed for uniform temperature distribution and plates that direct the return water to the hot zones of the boiler
Optimum heat transfer thanks to three-pass combustion principle and water-cooled inferno
The economizer section, where condensation takes place, is produced using stainless material. In this way, acidic condensate cannot damage this part.

6 bar operating pressure
109.1% yield value
The heat exchanger and condenser are made of stainless material

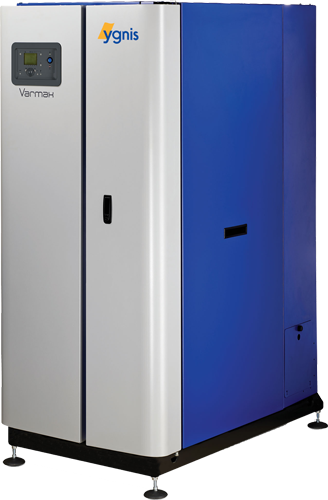

Premix burner with 20%-100% modulation ratio and running on natural gas or LPG fuel
Optimax: More efficient and more economical thanks to 2, 3 and 4 connection options
Sınıf 5 NOx sınıfına sahiptir (< 30 mg/kWh)
Turkish NAVISTEM B3000 control panel with warning lights for remote understanding.

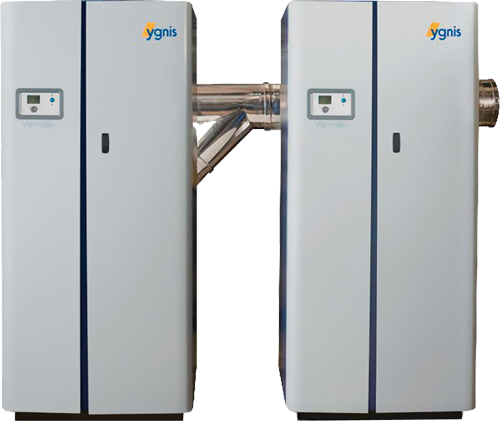

Up to 16 boilers can be connected as cascade
Complies with ErP regulation
As standard, there is a chimney flap, fresh air filter, transport hanger, interior lighting and flue gas temperature sensor
Optionally; automation sensors, room thermostats, control module via Internet, Navipass unit for direct communication to building automation via modBUS language, neutralization kit, magnetic filter and chimney connection kit are available
Suitable for B23, B23p, C13, C33 and C53 chimney types
