Steam Boilers
ESB
Liquid and Gas Fueled, Three Pass, High Pressure Steam Boiler
- Steam production capacity between 1-30 t/h
- Operating pressure from 6 to 16 bar
- Liquid and gaseous
- Suitable for instantaneous steam drafts with optimum water-to-steam volume ratio
- Low combustion chamber load (< 1.3 MW/m3) to ensure combustion is completed in the combustion chamber
- Full combustion and low NOx emissions thanks to thermal design
- Maximum benefit from the heat transfer surface with wet-back design
- Due to the coating of the boiler body with high-density insulation material, reduced radiation and boiler hibernation losses
- Boiler efficiency up to 91% (Up to 95.5% efficiency in economizer applications)
- Ease of installation and intervention thanks to the application of a walking platform on the boiler
- Optional use of water, air economizer, superheater

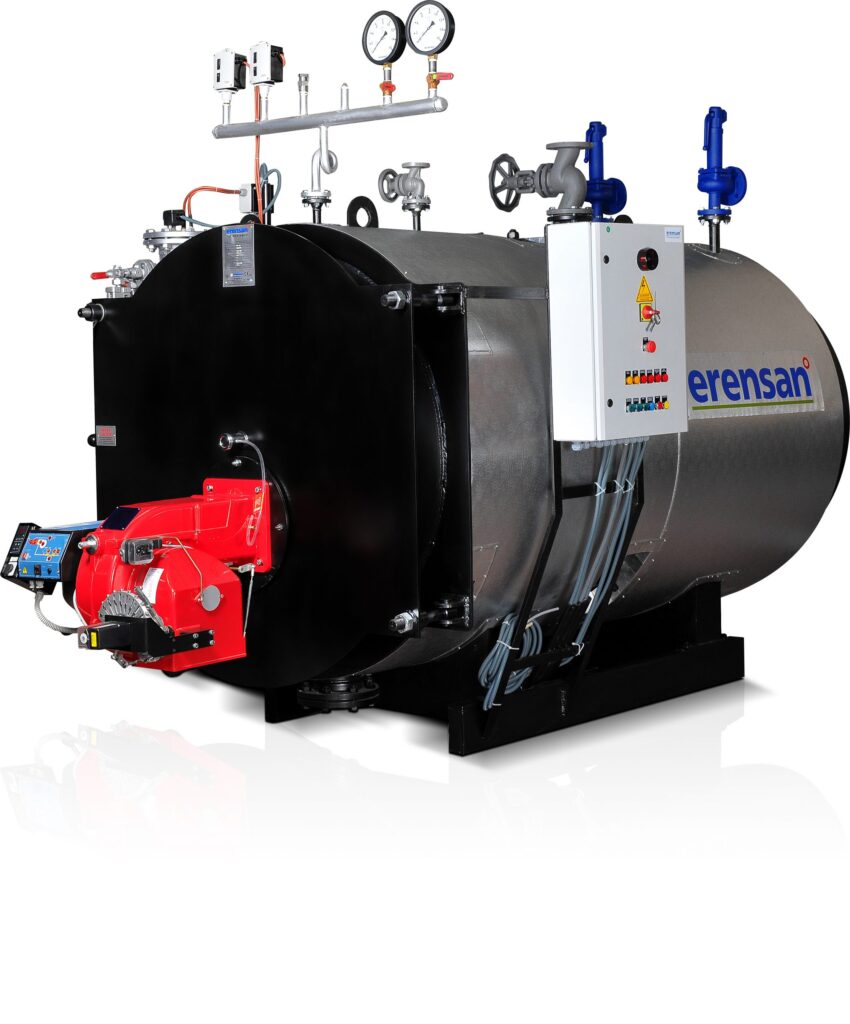

SP
Liquid and Gas Fueled, Two Pass, High Pressure Steam Boiler
- Steam production capacity between 0.25-5.5 t/h
- Operating pressure from 6 to 16 bar
- Liquid and gaseous
- Possibility of working with a fan burner
- Boiler efficiency up to 91%, efficiency up to 95% in economizer applications
- Ease of installation and intervention thanks to the application of a walking platform on the boiler
- Package accessories: Steam outlet, feed water inlet, vent, discharge, surface blowdown valves and safety valve, feed water pump group, operation and safety accessories, electrical control panel
- Optional use of water and air economizer
